Counterbalance spring unit for Catnic Garador Mk2 / Mk3c canopy garage door

01384 900 264

Spare Parts for UK Residential Garage Doors by Mail Order

Secure On-Line Shopping and Same-Day despatch

Items in Basket: Total Price:

Make of Door

Note: Garador was formerly Westland Engineering Ltd (WEL),
then Caradon Catnic Ltd. - Garador is now owned by Hormann

Replacement overhead spring units for Westland Garador Mk2, Mk3, Mk3c & pre -1999 type 'C' vertically tracked canopy garage doors from 6' 6" to 14" wide

Note: these doors have two springs within a box
mounted above the door as illustrated right

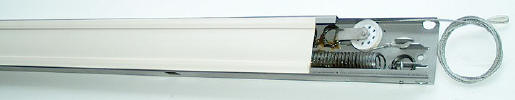

The replacement spring unit is supplied as a complete assembly with fitting instructions and a pair of replacement cables as shown below


Click image to enlarge

Replacement Garador Mk3 spring units are supplied with both springs
pre-tensioned onto transit hooks to simplify installation - fitting instructions

Popular types: £114.00 excl. VAT (e.g: PN57/1 & PN58)
(all other sizes £133.29 excl. VAT)

HOW TO ORDER
Identify the spring strength you require for you door from the chart below and click on the
part number (under-lined in the box) then click the 'Buy-Now' button on the next screen

Amourelle Products for UK Garage Door Spares by Mail Order

Buy On Line via our Secure Shopping Cart
Free Delivery Option to most UK destinations
on orders over £50

Spring selection table for Mk2, Mk3, Mk3c, type 'S/S' & pre -1999 type 'C' steel doors up to 8' 2" wide

Inside measurement
of the door frame
(not actual door size)
Width x Height

Horizon
& 90 Elite
(Ref: PN301) Carlton
& 90 Elite
(Ref: PN305) Georgian
Elite
(Ref: PN309) Chevron
Elite
(Ref: PN313) Parade
white/brown Salisbury
Elite

Imperial Metric

6' 6" x 6' 3" 1980 x 1905 PN58/449 PN58/449 - - - -

6' 6" x 6' 6" 1980 x 1980 PN58/449 PN58/449 PN167 PN167 PN167 -

6' 6" x 7' 0" 1980 x 2135 PN58/449 PN58/449 PN167 PN167 - -

7' 0" x 6' 6" 2135 x 1980 PN58/440 PN58/440 PN57/1 PN57/1 PN57/1 PN55/2

7' 0" x 7' 0" 2135 x 2135 PN57/1 PN55/2 PN150 PN55/2 PN155/447 PN155/447

7' 3" x 6' 4" 2220 x 1930 PN56/1 PN57/1 - - - -

7' 5" x 6' 6" 2260 x 1980 PN56/1 PN57/1 PN55/2 PN55/2 PN155/447 PN155/447

7' 5" x 7' 0" 2260 x 2135 PN55/2 PN150 PN108 PN155/447 PN155/447 PN108

7' 6" x 6' 6" 2286 x 1980 PN57/1 PN57/1 PN55/2 - - PN155/447

7' 8" x 6' 7" 2348 x 2000 PN115 PN55/2 PN150 PN55/2 PN155/447 PN155/447

7' 8" x 7' 0" 2348 x 2125 PN55/2 PN155/447 - PN155/447 PN155/447 PN155/447

7' 10" x 6' 7" 2400 x 2000 PN115 PN55/2 PN150 - - -

7' 10" x 7' 0" 2400 x 2125 PN55/2 PN155/447 - - - -

8' 0" x 6' 6" 2440 x 1980 PN115 PN55/2 PN150 - PN155/447 PN150

8' 0" x 7' 0" 2440 x 2135 PN150 PN155/447 PN108 - PN108 PN155/447

8' 2" x 6' 7" 2500 x 2000 PN55/2 PN150 - - - PN150

8' 2" x 7' 0" 2500 x 2125 PN155/447 PN155/447 - - - PN150

Belgravia double width steel doors (PN300 & PN330)

14' 0" x 6' 6" 4270 x 1980 PN155/450

14' 0" x 7' 0" 4270 x 2135 PN155/450

GRP & Timber Mk3, Mk3c & type 'C' doors up to 7' 5" wide (front stitched timber braced doors made before 1989)
Frame aperture size (not actual door size) Width x Height
Frame aperture size (not actual door size) Width x Height		Wentwood	Sherwood	Tudor	Seymour	Wolsey	Vertical Redwood	Cedar
Imperial	Metric	Wentwood	Sherwood	Tudor	Seymour	Wolsey	Vertical Redwood	Cedar
7' 0" x 6' 6"	2135 x 1980	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2	PN150	PN57/1
7' 0" x 7' 0"	2135 x 2135	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447	PN108	PN155/447
7' 5" x 6' 6"	2260 x 1980	PN55/2	PN55/2	PN150	PN150	PN150	PN155/447	PN55/2
7' 5" x 7' 0"	2260 x 2135	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447	PN108	PN155/447

Lightweight GRP Mk3, Mk3c & pre -1999 type 'C' up to 7' 6" wide (doors produced from 1997 - 1999)
Frame aperture size (not actual door size) Width x Height
		Arden	Kenmore	Stamford	Swinton	Oakham	Clifton
Imperial	Metric	Arden	Kenmore	Stamford	Swinton	Oakham	Clifton
7' 0" x 6' 6"	2135 x 1980	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2
7' 0" x 7' 0"	2135 x 2135	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2
7' 6" x 6' 6"	2286 x 1980	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447
7' 6" x 7' 0"	2286 x 2135	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447

GRP & Timber Mk3, Mk3c & type 'C' doors up to 7' 6" wide (steel braced doors made from 1989 to 1997)
Frame aperture size (not actual door size) Width x Height		Wentwood	Sherwood	Tudor	Seymour	Wolsey	Vertical Redwood	Cedar
Imperial	Metric	Wentwood	Sherwood	Tudor	Seymour	Wolsey	Vertical Redwood	Cedar
7' 0" x 6' 6"	2135 x 1980	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2	PN150	See below for various cedar types
7' 0" x 7' 0"	2135 x 2135	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447	PN108
7' 5" x 6' 6"	2260 x 1980	PN55/2	PN55/2	PN150	PN150	PN150	PN155
7' 5" x 7' 0"	2260 x 2135	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447	PN108
7' 6" x 6' 6"	2286 x 1980	-	-	PN55/2	PN55/2	PN55/2	-
7' 6" x 7' 0"	2286 x 2135	-	-	PN55/2	PN55/2	PN55/2	-

Cedarwood Mk3, Mk3c & type 'C' up to 7' 6" wide (back stitched steel braced doors made from 1989 to 1997)
Frame aperture size (not actual door size) Width x Height
		Vertical Cedar	Horizontal Cedar	Diagonal Cedar	Chevron Cedar
Imperial	Metric	Vertical Cedar	Horizontal Cedar	Diagonal Cedar	Chevron Cedar
7' 0" x 6' 6"	2135 x 1980	PN57/1	PN57/1	PN57/1	PN57/1
7' 0" x 7' 0"	2135 x 2135	PN55/2	PN55/2	PN55/2	PN55/2
7' 5" x 6' 6"	2260 x 1980	PN57/1	PN57/1	PN57/1	PN55/2
7' 5" x 7' 0"	2260 x 2135	PN150	PN150	PN150	PN55/2
7' 6" x 6' 6"	2286 x 1980	PN55/2	-	-	-
7' 6" x 7' 0"	2286 x 2135	PN55/2	-	-	-

Timber Mk3, Mk3c & pre -1999 type 'C' up to 7' 6" wide (doors produced from 1997 - 1999)
Frame aperture size (not actual door size) Width x Height
		Tudor	Seymour	Wolsey	Vertical Cedar	Chevron Cedar	Sandhurst	Cavendish
Imperial	Metric	Tudor	Seymour	Wolsey	Vertical Cedar	Chevron Cedar	Sandhurst	Cavendish
7' 0" x 6' 6"	2135 x 1980	PN55/2	PN55/2	PN55/2	PN57/1	PN57/1	-	-
7' 0" x 7' 0"	2135 x 2135	PN155/447	PN155/447	PN155/447	PN55/2	PN55/2	PN55/2	PN55/2
7' 5" x 6' 6"	2260 x 1980	PN55/2	PN55/2	PN55/2	PN57/1	PN55/2	PN55/2	PN55/2
7' 5" x 7' 0"	2260 x 2135	PN155/447	PN155/447	PN155/447	PN150	PN55/2	PN55/2	PN55/2
7' 6" x 6' 6"	2286 x 1980	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2
7' 6" x 7' 0"	2286 x 2135	PN55/2	PN55/2	PN55/2	PN55/2	-	-	-

Lightweight GRP Mk3, Mk3c & pre -1999 type 'C' up to 7' 6" wide (doors produced from 1997 - 1999)
Frame aperture size (not actual door size) Width x Height
		Arden	Kenmore	Stamford	Swinton	Oakham	Clifton
Imperial	Metric	Arden	Kenmore	Stamford	Swinton	Oakham	Clifton
7' 0" x 6' 6"	2135 x 1980	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2
7' 0" x 7' 0"	2135 x 2135	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2	PN55/2
7' 6" x 6' 6"	2286 x 1980	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447
7' 6" x 7' 0"	2286 x 2135	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447	PN155/447

Note: Garador have now ceased
production of these spring units but
our replacement units are manufactured
to the original Garador specification

Our spring units are shipped fully tensioned to simplify installation complete with one pair of replacement cables, fitting instructions & twelve months guarantee

Popular types: £114.00 excl. VAT (e.g: PN57/1 & PN58)
(all other sizes £133.29 excl. VAT)

HOW TO ORDER
Identify the spring strength you require for you door from the chart below and click on the
part number (under-lined in the box) then click the 'Buy-Now' button on the next screen

Take care to cross-check the details carefully as springs returned for refund
will be subject to a 20% charge to cover our admin & shipping costs

Springs are despatched by courier direct from our supplier, order by 1pm for same day despatch

PLEASE NOTE: Couriers normally deliver between 8.30am - 5.30pm
Monday to Friday and the driver will require a signature so please
bear this in mind when you specify the delivery address

We do not export springs overseas

All our prices are subject to 20% UK VAT

Free Delivery Option to
most UK destinations
on orders over £50
