Click image to enlarge
 |

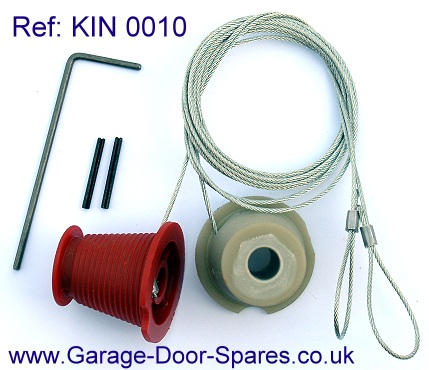

Support cables & cones for King vertically
tracked canopy doors (suits all door sizes)
supplied with two 3.2mm roll pins
fitting instructions
(PDF file)
our Ref: KIN0010
price: £
per pair excl. VAT |
|
|
|
Click image to enlarge
3mm long nosed punch for driving out roll-pins from canopy door cones
(an essential tool when replacing canopy cones & cables) |
|
|
|
our Ref: T3328 08
price: £
excl. VAT |
|
|
Click image to enlarge
 |

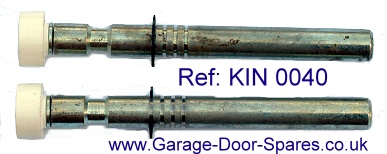

Roller spindles to suit all King
vertically tracked canopy doors
shaft dia 13mm - wheel dia. 22.5mm
overall length 136mm
(suits all door sizes)
supplied with four circlips
our Ref: KIN0040
price: £ per pair
excl. VAT |
|
|
|
Click image to enlarge
 |

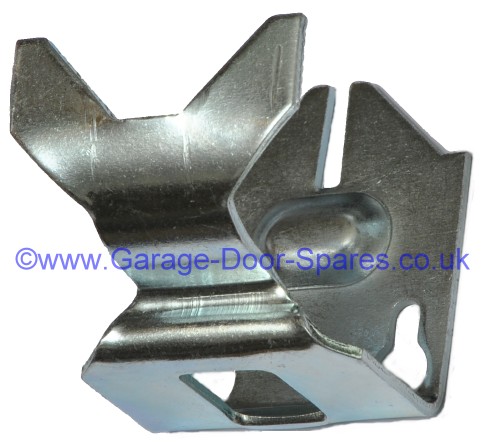

Spring support bracket for King canopy doors
(includes square cut-out to suit top latch shown below)
our Ref: HEN0240
price: £
excl. VAT
|
|
|
|
Click image to enlarge
 |
Replacement top latch
to suit King canopy doors
bracket dimensions: 38mm x 39mm x 25mm
6mm dia. fixing hole pitch: 25mm x 17mm
supplied complete with 1.3Mtr black plastic
coated steel latch cable and adjuster clip
our Ref: HEN0330
price: £
excl. VAT
|
|
|
|
Click image to enlarge
 |
Replacement latch cable to suit King canopy
doors with a cable operated top latch
overall dia. 2mm -
length 2.5Mtr - black plastic coated
includes adjuster clip
our Ref: APL0180 / SWR0180
price: £
excl. VAT (individually)
10% discount for two or more
Note: our replacement latch cables are supplied as
illustrated with a loop pre-formed & crimped on one end only, if you don't
require a pre-formed loop you can cut the cable down as required and form your
own loop using the clip provided |
|
|
If the spares for your King door are no longer available it may be possible to
refurbish your existing door by fitting a replacement door support gear kit >> details |
|
Locking 'T' handle to suit King garage doors •
Replacement Keys •
Note: the design of the handle we supply may differ
slightly from
the images shown which are provided for identification only |
|
Click image to enlarge
 |
Locking 'T' handle with two keys
Supplied with fixing screws
The back plate has two 35mm long threaded fixing spigots spaced 51mm apart and
8mm square shaft approx 75mm long which can be easily cut down to match the length of your original shaft.
Choice of Silver or Black
|
|
|
Click image to enlarge
 |
Silver finish
our Ref: HEN0120
price £
excl. VAT |
|
Black finish
our Ref: HEN0130
price £
excl. VAT |
|
|
|
Click image to enlarge
supplied with two 8mm pivot pins &
starlock fixing washers as illustrated. |
Internal handle for King doors
with two-point bar type locking
fixing screws orientated North/South
(see note below)
our Ref: WES0260
price: £ excl. VATNote: some early versions of these
handles had East/West fixings, (back plate fixing screws are positioned left &
right) regretfully these are no longer available but the current north/south
version can be fitted as an alternative by drilling two additional holes in the
door orientated north/south and securing the new inner handle WES0260 with
separate fixing screws
Internal handle for King doors
with three-point bar type locking
This item is discontinued and no
alternative product is available
|
|
|
Three point locking version |
|
|
|
Click image to enlarge
 |
King locking handle assembly
(as fitted to some late production King doors)
our Ref: KIN2020
This item is discontinued
Note: regretfully we are unable to suggest an alternative lock assembly that can
be fitted to King doors that used this type of lock but your local garage door
service specialist may be able to adapt your door to accept an alternative type
of lock. |
|
|
|
Click image to enlarge
 |
Eurolock barrel as used on some King doors
supplied with three keys
Brass 40mm barrel length -
Discontinued
Brass 50mm barrel length -
£14.58 excl. VAT
Dual Finish Brass and Nickel 40mm barrel length - our ref: MX-D/10/30
price £ excl. VAT
|
|
|
|
Click image to enlarge
 |
Graphite Lock Lubricating Powder
Graphite powder is a dry compound which is ideal
for lubricating garage door locks, car door locks and
outside padlocks etc. to prevent sticking and extend
the life of the lock by reducing wear and corrosion.
Unlike oil, Graphite powder won't attract a build-up
of dirt & grime and it cannot freeze.
The 50g puffer dispenser with it's pointed probe
ensures quick & simple application to any lockOur
Ref: K30050
price: £ excl. VAT |
|
|
