Spare parts for Arcadian
horizontally tracked door support gear
As fitted to garage doors manufactured by the following companies
Bonsack - Cedar Door - Classic - Meridian - Minster - Select
Replacement rollers, steel tracks, track support brackets & track-end buffers
Click image to enlarge

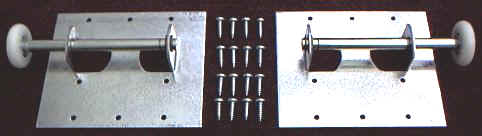

Roller spindles for Arcadian AP100 - AP500
series horizontally tracked door gear
wheel dia.: 46mm
shaft dia.: 12.5mm
overall length: 167mm
Pair of Arcadian tracks to suit horizontally tracked doors weighing up to
68kgs (will suit doors up to 227kgs if additional support brackets are fitted)
supplied with buffer stops & one pair of support brackets
and two 76cm lengths
of steel punched angle for use as diagonal bracing struts
(APL0047)
track length 192cm - suits 46mm dia. rollers
our ref: APZ120/1918 - price £ per pair excl. VAT
Track support brackets for Arcadian tracks - our ref: APZ160
Price £ per pair excl. VAT
Click image to enlarge

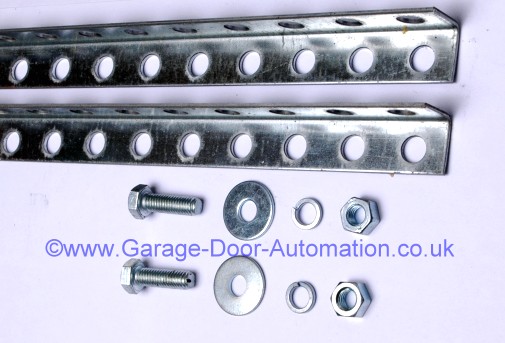

Steel punched angle 76cm long
(one pair)
dimensions: 23mm x 23mm
supplied with nuts, bolts & washers as illustrated
our
ref: APL0047
Qty of packs in stock:
price: £
excl. VAT
Click image to enlarge

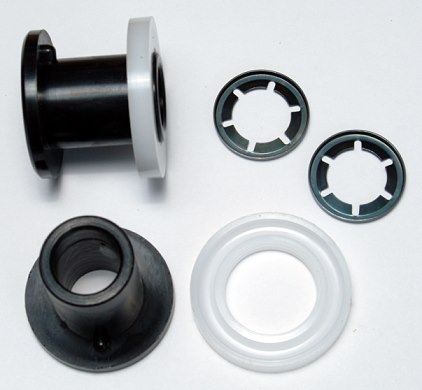

Main pivot bush kit for Arcadian AP150
door
gear
with hollow box section pivot arms
bush dimensions:
bore: 16mm
sleeve dia: 22.8mm
overall length: 26mm
(kit includes pair of replacement starlok washers as used on older gear
but this kit can also be used on the later pivot bearings with nyloc nut)
Main pivot bush kit for Arcadian AP200 & AP250
door gear with hollow box section type pivot arms
bush dimensions:
bore: 16mm
sleeve dia: 22.8mm
overall length: 32.7mm
(kit includes pair of replacement starlok washers as used on older gear
but this kit can also be used on the later pivot bearings as listed
below)

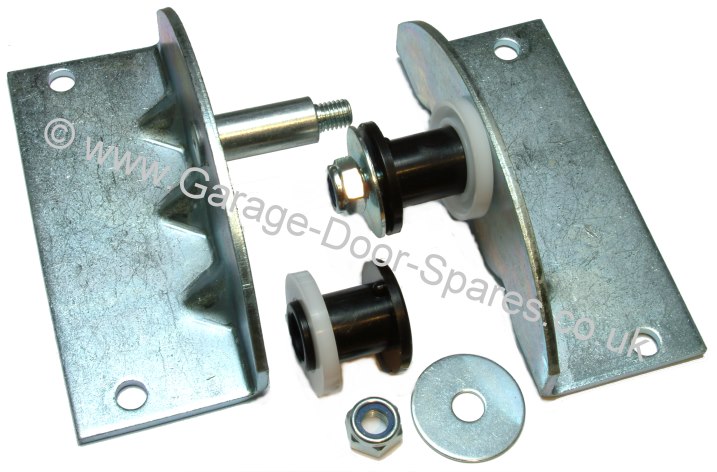

Main pivot bearing upgrade kit for
Arcadian AP200 & AP250 door gear
with hollow box section type pivot arms
upgrades older type with starlok retaining clip to current nyloc nut type
our ref: AP71/200
price £ per pair
excl. VAT
Click image to enlarge

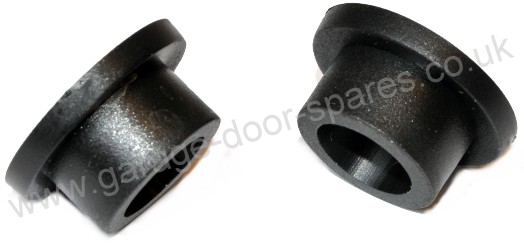

Pair of replacement nylon
bushes for the 'arm to door'
bearing bracket on Arcadian AP150, AP200
& AP250
door gear with hollow box section type pivot arms.
pack contains two nylon bushes(bracket not included)
bush dimensions:
bore: 13.3mm -
sleeve: 19mm dia. -
outer rim: 28mm dia.
Our Ref: APZ299
price: £ per pair
excl. VAT
Click image to enlarge

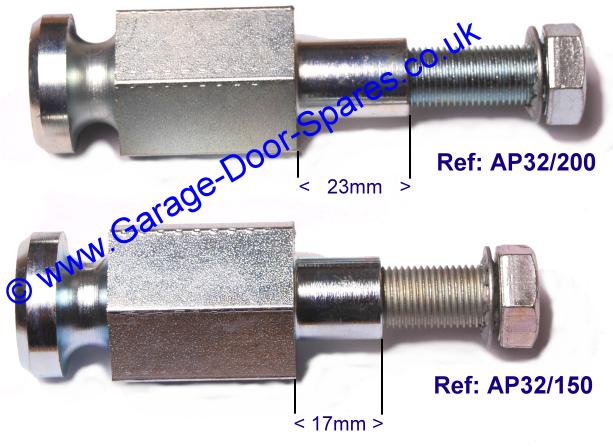

Replacement spring anchor pins for Arcadian AP150, AP200
& AP250 door gear with hollow box section type pivot arms
price £20.81 per pair excl. VAT
type: AP32/200 for AP200 & AP250
type: AP32/150 for AP150 gear only
choose type:
Click image to enlarge

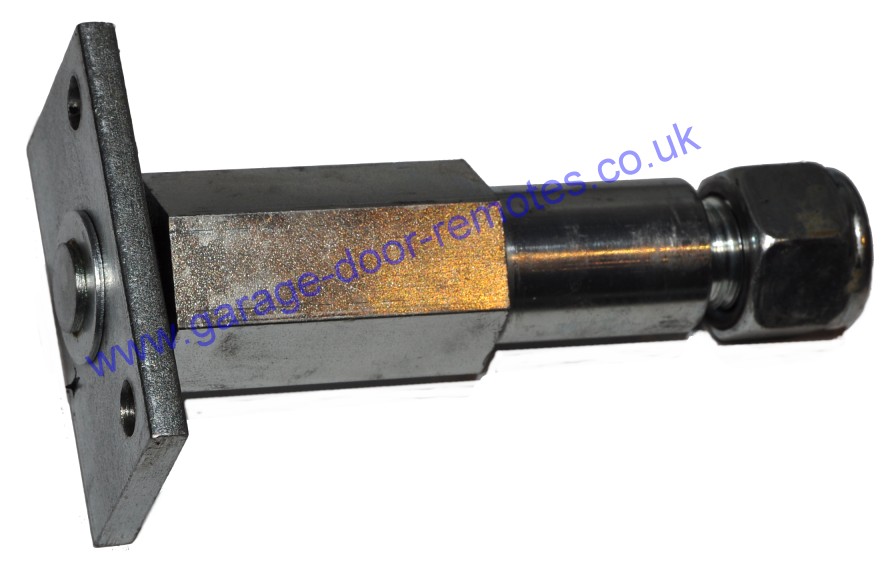

Spring anchor pin with twin-spring yoke assembly
for AP350/AP350 gear with 60mm x 40mm hollow
box section arms.
overal length: 129mm - collar dia: 25.3mm dia.
Our Ref: AP52
price: £
each
excl. VAT

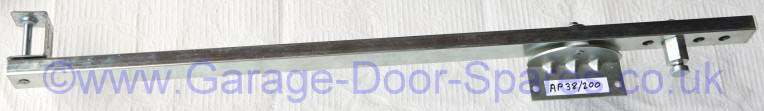

Replacement 'hollow box section' pivot arms for Arcadian door gear
main pivot bearing & door bearing bracket included
Click image to enlarge
(AP37, AP39 & AP39 includes spring anchor pins as illustrated
above)
ref: AP37/150
dimensions: 38mm x 19mm x 1170mm to suit AP150 (standard height)
ref: AP37/200 dimensions: 50.8mm x 25.4mm
x 1170mm to suit AP200/AP250 (standard height)
ref: AP38/150 dimensions: 38mm x 19mm x 1110mm to suit AP150SA door gear (short arm)
ref: AP38/200 dimensions: 50.8mm x 25.4mm x 1110mm to suit AP200SA/AP250SA (short arm)
ref: AP39/150 dimensions: 38mm x 19mm x 1310mm to suit AP150HA door gear (high arm)
ref: AP39/200 dimensions: 50.8mm x 25.4mm x 1310mm to suit AP200HA/AP250HA (high arm)
ref: AP57 dimensions: 60mm x 40mm x 1160mm to suit AP350/AP500 (standard height)
ref: AP58 dimensions: 60mm x 40mm x 1109mm to suit AP350SA/AP500SA gear (short arm)
ref: AP59 dimensions: 60mm x 40mm x 1312mm to suit AP350HA/AP500HA gear (high arm)
(spring anchor pins or yokes not included)
Availability:
delivery within 1-3 working days direct from manufacturer
AP01 - pair of springs for pre-multi-spring Arcadian AP100 gear
(single spring each side)
Approximate dimensions: Length over coils
310mm (excluding loops)
outside dia. 63mm - number of coils 52
Qty of pairs in stock:
£
excl. VAT
AP30 - pair of springs for Arcadian AP150/CM150 gear - as image above
(these are also used on early Arcadian 'solid arm' AP250 gear fitted with two springs on each side)
Approximate dimensions:
Length over coils 530mm (excluding loops) outside dia. 42mm.
wire dia 5.8mm. - number of coils 95
Qty of pairs in stock:
£
excl. VAT
AP31 - pair of springs for Arcadian AP200/CM200 gear - as image above
(these are also used on Arcadian AP350 & AP500 gear with two springs on each side)
Approximate dimensions: Length over coils 590mm (excluding loops) outside dia.
42mm.
wire dia 6.4mm. - number of coils 92
Qty of pairs in stock:
£
excl. VAT
AP45 - pair of springs for Arcadian AP250/CM250 gear
Approximate dimensions: Length over coils 508mm (excluding loops) outside
dia. 54mm
wire dia 7.5mm - colour blue
Qty of pairs in stock:
£
excl. VAT
Click image to enlarge
Spring as used on Arcadian AP100 multi-spring gear
AP101 - Set of six springs for Arcadian AP100 multi-spring door gear
(AP100 multi-spring gear has cluster of three springs
fitted each side)
Length over coils 314mm - 25mm dia.
(approximate)
Qty of packs in stock:
£
excl. VAT
HOW TO ORDER
Identify the spring type you require from the details provided, click 'Buy Now' then follow the on-screen instructions
Note: Garage door springs tend to fail within
a year of each other so we recommend they are replaced in pairs,
therefore we don't supply springs individually.
Note: Take care to cross-check the spring dimensions & other details carefully as springs ordered in
error and returned for refund will be subject to a 20% charge to cover our admin & shipping costs.
Spring characteristics are determined by more factors than just the dimensions or number of turns so you
must ensure that the colour coding, diameter, length and the number of turns of your
original springs match all the information given beside the replacement
and that your door is fitted with Arcadian lifting gear before ordering.
Need help identifying your door gear manufacturer?
Click here
PLEASE NOTE:
Springs are delivered by courier between 8.30am - 5.30pm
Monday to Friday and the driver will require a signature on
delivery
so please bear this in mind when you specify the delivery address
We do not export springs overseas
Replacement spring adjusting bolts
Click image to enlarge
Spring tensioning bolt
M8 x 200mm - price per pair: £10.42
excl. VAT
M10 x 200mm - price per pair: £11.67
excl. VAT
M10 x 250mm - price per pair: £12.42 excl. VAT
Locking handle & latch kit
suits horizontally tracked doors up to 4575mm wide (15') supplied with fixing screws, door pull cord & two keys
our ref: AP0050
price: £ excl. VAT
Pair of steel corner reinforcing plates
These provide a suitable fixing for the support arms
on doors with a steel or aluminium rear framework.
zintec plated steel 50cm x 30cm x 2mm
our ref: NG73
price: £ per pair
excl. VAT
Note: subject to recent design change,
our current stock is not exactly as illustrated.
