Click image to enlarge
Note: the above image is for identification
purposes only, our replacement handle
has a silver grey painted finish |

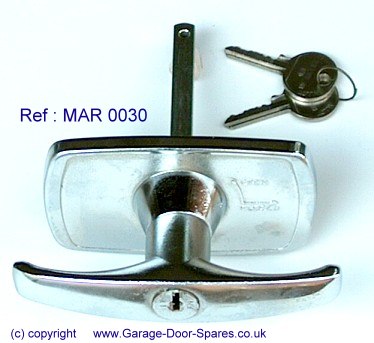

Locking 'T' handle to suit most Marley doors
has a 94mm x 55mm facia plate with two 12mm long
threaded fixing spigots spaced 70mm apart, supplied with a 83mm long x 8mm square shaft which
can be easily cut down to match the length of your original handle.
supplied with fixing screws & two keys - silver grey finish
our Ref: MAR0030
price: £ excl. VAT |
|
|
|
Click image to enlarge
 |
Locking 'T' handle to suit Marley doors
has a 76 x 44mm facia plate and
two 13mm long M6 threaded fixing spigots spaced
51mm apart, supplied with a 79mm long x 8mm square shaft is pre-drilled with a 4.5mm hole to a depth of 18mm to accept a self tapping fixing screw for the Marley internal handle types.
supplied with M6 fixing screws
& two keys - colour: black our Ref: CAR0050
price: £
excl. VAT |
|
|
•
Replacement Keys •
|
|
Click image to enlarge
 |
Two point locking cam to
suit Marley doors
pivot holes
at 75mm spacing, fits 8mm
square lock shaft with either
sliding bar
locking or cable operated sprung latches
supplied with 8mm pivot pins & starlock fixing
washersour Ref: APL0140 / APZ230
price: £
excl. VAT |
|
|
|
Click image to enlarge
 |
Graphite Lock Lubricating Powder
Graphite powder is a dry compound which is ideal
for lubricating garage door locks, car door locks and
outside padlocks etc. to prevent sticking and extend
the life of the lock by reducing wear and corrosion.
Unlike oil, Graphite powder won't attract a build-up
of dirt & grime and it cannot freeze.
The 50g puffer dispenser with it's pointed probe
ensures quick & simple application to any lockOur
Ref: K30050
price: £ excl. VAT |
|
|
|
|
|
Click image to enlarge
 |
Replacement latch cable to suit
doors with cable operated latches
overall dia. 2mm - length 2.5Mtr
black plastic coated steel rope - includes adjuster clip
our Ref: APL0180 / SWR0180
price: £
excl. VAT (individually)
10% discount for two or more
Note: our replacement latch cables are supplied as
illustrated with a loop pre-formed & crimped on one end only, if you don't
require a pre-formed loop you can cut the cable down as required and form your
own loop using the clip provided |
|
|
|
Click image to enlarge
 |

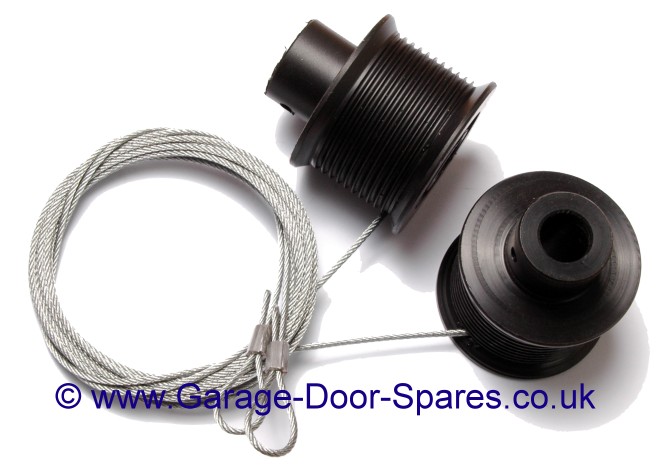

Cones & cables with looped ends
to suit
Marley
vertically
tracked canopy doors including Quickfix 2000 series
(regretfully no fitting instructions available)
£18.75
per pair excl. VAT
For 6ft 6in high doors - our ref: MAR0015
For 7ft 0in high doors - our ref: MAR0016
|
|
|
Click image to enlarge
4mm long nosed pin punch
for driving out roll-pins from canopy door cones
(an essential tool when replacing canopy cones & cables)
Our Ref:
T3328 10 -
price £
excl. VAT -
|
|
|
|
Click image to enlarge
 |
Spring support bracket with latch
cut-out
to suit
Marley
Quickfix 2000
vertically tracked canopy doors
our Ref: HEN0240
price: £
excl. VAT |
|
|
|
Click image to enlarge
 |

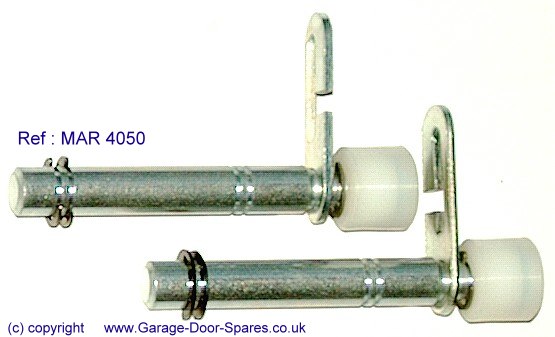

Roller spindles to suit Marley vertically tracked
canopy doors including Quickfix 2000 series
shaft dia 12.7mm - wheel dia. 22mm
overall length 106mm (supplied with four circlips)
our Ref: MAR4050
price: £ per pair excl. VAT |
|
|
|
Click image to enlarge
 |
Roller spindles to suit Marley Autodor & MG
horizontally tracked doors
shaft dia 12.7mm - wheel dia. 46mm
overall length 125mm (supplied with four circlips)
our Ref: APM20
price: £ per pair excl. VAT |
|
|
Counterbalance springs for Marley horizontally tracked doors
These 'pattern' replacement springs
are manufactured to the original Marley specification
D.I.Y. guide to replacing springs
|
HOW TO ORDER
Identify the spring type you require from the details provided, click 'Buy Now' then follow the on-screen instructions
Note: Garage door springs tend to fail within a year of each other so we recommend they are replaced in pairs, therefore we don't supply springs individually.
|
|
Note: Take care to cross-check the spring dimensions & other details carefully as springs ordered in
error and returned for refund will be subject to a 20% charge to cover our admin & shipping costs.
Spring characteristics are determined by more factors than just the dimensions or number of turns so you must
ensure that the colour coding, diameter, length and the number of turns of your
original springs match all the information given beside the replacement
and that your door is fitted with Marley lifting gear before ordering.
Need help identifying your door gear manufacturer?
Click here |
our Ref: APM34 - colour code silver
approximate dimensions:
length over coils 510mm (20") dia 36mm - 87 coils
price £ per pair excl. VAT
Qty of pairs in stock:
|
|
our Ref: APM35 - colour code black
approximate dimensions:
length over coils 584mm (23") dia 37mm - 106 coils
price £ per pair excl. VAT
Qty of pairs in stock:
|
|
our Ref: APM36 - colour black with red end
(closed hook)
approximate dimensions:
length over coils 584mm (23") dia 43mm - 92 coils
price £ per pair excl. VAT
Qty of pairs in stock:
|
|
Note: Take care to cross-check the spring dimensions & other details carefully as springs ordered
in error and returned for refund will be subject to a 20% charge to cover our admin & shipping costs
PLEASE NOTE:
Springs are delivered by courier between 8.30am - 5.30pm
Monday to Friday and the driver will require a signature on
delivery
so please bear this in mind when you specify the delivery address
We do not export springs overseas
If the spares for your Marley door are no longer available it may be possible to
refurbish your existing door by fitting a replacement door support gear kit
>> details
|
|
Replacement spring tension adjusting bolts |
|
Click image to enlarge
Spring tension adjusting bolt |
|
|
|
M8 x 200mm - price per pair: £10.42 excl. VAT -
M10 x 200mm - price per pair: £11.67 excl. VAT -
M10 x 250mm - price per pair: £12.42 excl. VAT -
|
|
