Garador garage doors

Note: Garador was formerly a trading name of Caradon
Catnic Ltd - Garador is now owned by Hormann

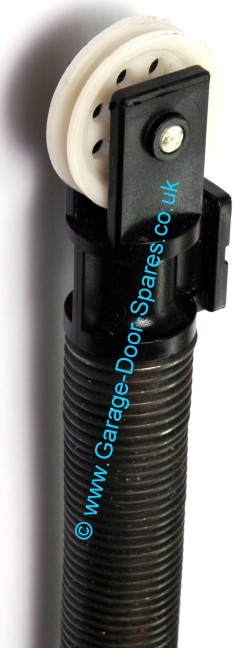

Genuine Garador replacement springs for  type 'C' vertically
tracked canopy doors manufactured from 1999 to 2002

click image to enlarge

Garador type 'C' canopy doors have one spring housed in a white plastic vertical tube mounted on each side of the door behind the timber frame upright



HOW TO ORDER

Identify the spring strength you require from the chart below and note the part number then scroll to the bottom of the blue table and select the spring type from the 'drop-down' list and click 'Buy Now' then follow the on-screen instructions




click image to enlarge

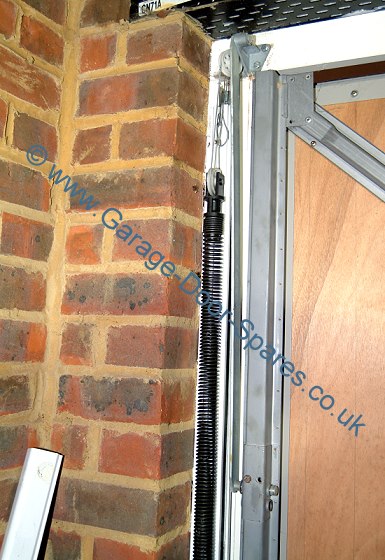

white plastic cover removed to reveal spring

Spring selection table for type 'C' vertically tracked steel canopy doors

Inside measurement
of the door frame
(not actual door size)
Width x Height
Horizon &
Horizon Elite		Carlton
& Carlton Elite		Chevron &
Chevron Elite		Georgian &
Georgian Elite		Salisbury &
Salisbury Elite		Beaumont &
Cathedral		Parade
white/brown
ImperialMetric
6' 6" x 6' 3"1980 x 1905G230-18-1G230-18-1-----
6' 6" x 6' 6"1980 x 1980G230-18-1G230-18-1G230-18-1G230-18-3--G230-18-2
6' 6" x 7' 0"1980 x 2135G230-18-2G230-18-2G230-18-2G230-18-5---
7' 0" x 6' 3"2135 x 1905G230-18-1G230-18-1-----
7' 0" x 6' 6"2135 x 1980G230-18-1G230-18-1G230-18-2G230-18-3G230-18-3G230-18-3G230-18-2
7' 0" x 7' 0"2135 x 2135G230-18-2G230-18-2G230-18-2G230-18-5G230-18-5G230-18-4G230-18-3
7' 3" x 6' 4"2220 x 1930G230-18-1G230-18-2-----
7' 5" x 6' 3"2260 x 1905G230-18-1G230-18-2-----
7' 5" x 6' 6"2260 x 1980G230-18-1G230-18-2G230-18-3G230-18-4G230-18-5G230-18-3G230-18-3
7' 5" x 7' 0"2260 x 2135G230-18-1G230-18-3G230-18-6G230-18-5G230-18-5G230-18-5G230-18-4
7' 6" x 6' 6"2286 x 1980G230-18-3G230-18-3G230-18-4G230-18-4G230-18-5G230-18-4G230-18-3
7' 6" x 7' 0"2286 x 2135G230-18-3G230-18-4G230-18-6G230-18-5G230-18-5G230-18-5G230-18-4
7' 8" x 6' 3"2348 x 1905G230-18-1G230-18-1-----
7' 8" x 6' 6"2348 x 1980G230-18-2G230-18-2G230-18-4G230-18-4-G230-18-4-
7' 8" x 7' 0"2348 x 2125G230-18-3G230-18-3G230-18-6G230-18-5-G230-18-4-
8' 0" x 6' 3"2440 x 1905G230-18-3G230-18-3-----
8' 0" x 6' 6"2440 x 1980G230-18-3G230-18-4-G230-18-6G230-18-5G230-18-4G230-18-5
8' 0" x 7' 0"2440 x 2135G230-18-3G230-18-4-G230-18-6G230-18-6G230-18-5G230-18-5
8' 2" x 6' 3"2500 x 1905G230-18-3G230-18-3-----
8' 2" x 6' 6"2500 x 1980G230-18-3G230-18-4-----
8' 2" x 7' 0"2500 x 2125G230-18-4G230-18-4-----
click here to order
Timber type 'C' vertically tracked canopy doors
(doors made from 1999 - 2002)
Frame aperture size
(not actual door size)
Width x Height
TudorSeymourWolseyVertical
Cedar		Chevron
Cedar		Sandhurst &
Cavendish
ImperialMetric
7' 0" x 6' 6"2135 x 1980G230-18-2G230-18-2G230-18-2G230-18-1G230-18-2-
7' 0" x 7' 0"2135 x 2135G230-18-3G230-18-3G230-18-3G230-18-2G230-18-3-
7' 5" x 6' 6"2260 x 1980G230-18-3G230-18-3G230-18-3G230-18-1G230-18-3G230-18-3
7' 5" x 7' 0"2260 x 2135G230-18-4G230-18-4G230-18-4G230-18-2G230-18-3G230-18-4
7' 6" x 6' 6"2286 x 1980G230-18-3G230-18-3G230-18-3G230-18-2G230-18-3G230-18-3
7' 6" x 7' 0"2286 x 2135G230-18-4G230-18-4G230-18-4G230-18-2-G230-18-4
GRP type 'C'  vertically tracked canopy doors
(doors made from 1999 - 2002)
Frame aperture size
(not actual door size)
Width x Height
StamfordDerwentSwintonWoburn
ImperialMetric
7' 0" x 6' 6"2135 x 1980G230-18-2G230-18-2G230-18-2G230-18-2
7' 0" x 7' 0"2135 x 2135G230-18-3G230-18-3G230-18-3G230-18-3
7' 5" x 6' 6"2260 x 1980G230-18-2G230-18-2G230-18-2G230-18-2
7' 5" x 7' 0"2260 x 2135G230-18-3G230-18-3G230-18-3G230-18-3
Timber type 'C' vertically tracked canopy doors
(doors made from 1999 - 2002)
Frame aperture size
(not actual door size)
Width x Height
TudorSeymourWolseyVertical
Cedar		Chevron
Cedar		Sandhurst &
Cavendish
ImperialMetric
7' 0" x 6' 6"2135 x 1980G230-18-2G230-18-2G230-18-2G230-18-1G230-18-2-
7' 0" x 7' 0"2135 x 2135G230-18-3G230-18-3G230-18-3G230-18-2G230-18-3-
7' 5" x 6' 6"2260 x 1980G230-18-3G230-18-3G230-18-3G230-18-1G230-18-3G230-18-3
7' 5" x 7' 0"2260 x 2135G230-18-4G230-18-4G230-18-4G230-18-2G230-18-3G230-18-4
7' 6" x 6' 6"2286 x 1980G230-18-3G230-18-3G230-18-3G230-18-2G230-18-3G230-18-3
7' 6" x 7' 0"2286 x 2135G230-18-4G230-18-4G230-18-4G230-18-2-G230-18-4

Note: we recommend that these spring units are replaced in pairs

Spring identification markingsPrice: £121.70 per pair inc. VAT (all versions)

price includes carriage to most UK destinations

Availability: delivery within 2-5 working days
(despatched by courier direct from our supplier)

Garador Part CodeColour markings
G230-18-1one white band
G230-18-2two white bands
G230-18-3one green band
G230-18-4two green bands
G230-18-5one red band
G230-18-6two red bands

colour markings

Garador type 'C' canopy doors have one spring mounted on each side of the
door behind the timber frame upright housed in a white plastic vertical tube

Take care to cross-check the details carefully as springs returned for refund
will be subject to a 20% charge to cover our admin & shipping costs

PLEASE NOTE:  A signature will be required on delivery of springs

Springs are despatched by courier, if you are not at home to sign for the parcel 8.30am - 5.30pm Monday – Friday, please provide an alternative address on our on-line order checkout page



All our prices include VAT

We do not export springs overseas

Other replacement parts for Garador type 'C' vertically
tracked canopy doors manufactured from 1999 to 2002

Note: These doors have one spring housed in a white plastic vertical tube mounted
on each side of the door behind the timber frame upright as shown here

Click image to enlarge

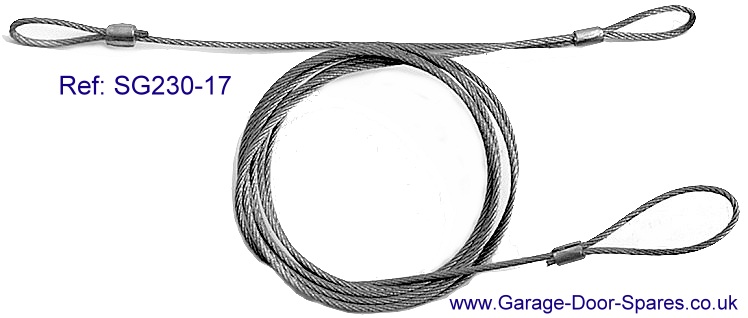

Support cables to suit Garador type 'C' vertically tracked canopy doors manufactured from 1999 to 2002 (these Garador's have one spring housed in a white plastic vertical tube mounted on each side of the door behind the timber frame upright as shown here)

Garador ref: SG230.17
Our Ref: GAR0015  Qty in stock:
price: £ per pair inc. VAT



Click image to enlarge

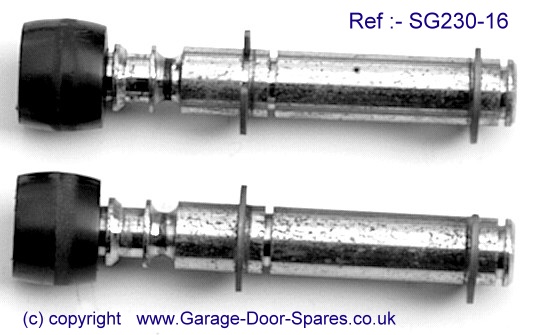

Genuine Garador guide rollers with spindles for
1999 - 2002 Garador type 'C' vertically tracked
canopy doors with side mounted springs as shown here
overall length 92mm - wheel dia. 21mm - circlip fitting

as Garador ref: SG230-16
our Ref: GAR0021  Qty in stock:
price: £ per pair inc VAT

Click image to enlarge

Link arms and mounting brackets for type 'C' canopy doors from 1999 - 2002
 (LH & RH refers to view from inside garage)
Link arm - left side Garador Ref: SG230-11L
(without Mounting bracket & pulley assy)
Availability: delivery within 2-4 working days		£ inc. VAT
Link arm - right side Garador Ref: SG230-11R
(without Mounting bracket & pulley assy)
Availability: delivery within 2-4 working days		£ inc. VAT
Mounting bracket & pulley assy. left side
Garador Ref: SG230-13L
Qty in stock: 		£ inc. VAT
Mounting bracket & pulley assy. right side
Garador Ref: SG230-13R
Qty in stock: 		£ inc. VAT
