Click image to enlarge
 | Haskins / Starfleet locking T handle
67mm x 54mm facia plate with two fixing holes at 38mm centres- supplied with a 80mm long x 8mm square shaft which can be easily cut down to match the length of your original handle - silver grey finish.
supplied with two keys, M5 csk fixing
screws, washers & M5 nyloc nuts.
our Ref: STAR0010 Qty in stock:
price: £ inc VAT | | | Note: this replacement handle may differ slightly from your original so it may be necessary to enlarge the hole in the door to approx 26mm to accommodate a flange on the rear.
|
|
Click image to enlarge
 | Haskins 'Roll-Over-Dor' lever handle
67mm x 54mm facia plate with two
fixing holes at 38mm centres
supplied with a 40mm long x 8mm square shaft
silver grey finish - supplied with two keysAvailability: Discontinued
(The STAR0010 'T' type handle above can be fitted as an alternative) |
|
| • Replacement Keys • |
Click image to enlarge
 | Haskins Pop-Up 'T' handle
127mm x 39mm facia plate with two fixing holes
at 51mm centres - 8mm square shaft
chrome finish - supplied with two keys
our Ref: STAR0040 Qty in stock:
price: £ inc VAT |
|
|
Click image to enlarge
 | Two point locking cam with outer pivot
holes at 75mm spacing to suit Haskins doors
fits 8mm square lock shaft with either sliding bar
locking or cable operated sprung latches
Grub screw, 8mm pivot pins & starlock fixing washers included
our Ref: APL0140 Qty in stock:
price: £ inc VAT | |
|
Click image to enlarge
| Haskins/Starfleet Anti-Vandal 'Pop-Up' handle
115mm x 74mm facia plate with two concealed fixing
holes at 51mm centres - includes internal handle etc.
black finish - supplied with two keys
our Ref: STAR0045 Qty in stock:
price: £ inc VAT |
|
|
Click image to enlarge
| Pair of roller spindles & brackets for single & double
width Haskins/Starfleet horizontally tracked doorswheel dia. = 46mm
shaft dia = 12mm
overall length =118mm
bracket = 60mm W x 65mm H our Ref: HAS0085 Qty in stock:
price: £ inc VAT |
|
|
Click image to enlarge

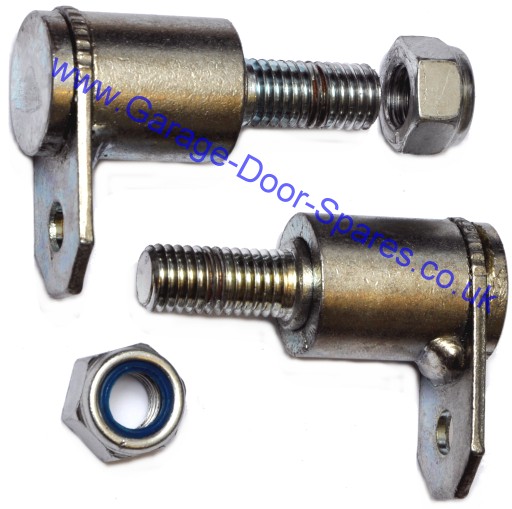

 | Pair of spring pivot pins for Haskins/Starfleet horizontally tracked doors
Note: The design of these Haskins/Starfleet pivot pins
has been revised, the new version is supplied with swivel
plates & nyloc nuts as illustrated but it can be used as a
direct replacement for the original type with a triangular
swivel cam plate.our Ref: HAS0089 Qty in stock:
price: £ inc VAT |
|
|
Counterbalance springs for Haskins / Starfleet horizontally tracked doors
Our 'pattern' replacement springs are manufactured to the original Haskins Starfleet specification
D.I.Y. guide to replacing springs
 Our ref: STAR0050 - colour coded grey, typically
fitted to Haskins & Starfleet doors up to 7' wide**
price per pair £ inc. VAT | length over coils 470mm
dia 40mm - 94 coils
wire dia. 5mm | | Our ref: STAR0060 - colour coded white, typically
fitted to Haskins & Starfleet doors up to 7' - 9' wide**
price per pair £ inc. VAT | length over coils 470mm
dia 40mm - 89 coils
wire dia. 5.4mm | | Our ref: HAS0065 - colour coded yellow typically
fitted to Haskins & Starfleet doors up to 9' - 10' wide**
price per pair £ inc. VAT | length over coils 495mm
dia 40mm - 82 coils | | Our ref: HAS0070 - colour coded blue, typically
fitted to Haskins & Starfleet doors up to 10' - 14' wide**
price per pair £ inc. VAT | length over coils 455mm
dia 53mm - 70 coils
wire dia. 6.4mm - | | Our ref: HAS0075 - colour coded red, typically
fitted to Haskins & Starfleet doors over 14' wide**
discontinued (contact us for advice) | length over coils 445mm
dia 53mm - 68 coils | |
Availability: despatched by courier direct from our supplier, order by 1pm for same day despatch Note**: the spring dimensions and door sizes quoted are approximate and are only
intended as a rough guide. The spring dimensions, number of coils and colour
should also be compared when selecting replacement springs. HOW TO ORDER
Identify the spring type you require from the details provided, click 'Buy Now' then follow the on-screen instructionsNote: Garage door springs tend to fail within a year of each other so we recommend they are replaced in pairs, therefore we don't supply springs individually. | | Take care to cross-check the spring dimensions & other details carefully as springs ordered in error and returned for refund will be subject to a 20% charge to cover our admin & shipping costs. Spring characteristics are determined by more factors than just the dimensions or number of turns so you must ensure that the colour coding, diameter, length and the number of turns of your original springs match all the information given beside the replacement and that your door is fitted with Haskins/Starfleet lifting gear before ordering. Need help identifying your door gear manufacturer? Click here |
|
Replacement spring adjusting bolts | Click image to enlarge
Spring tensioning bolt | | | M8 x 200mm - price per pair: £12.50 - Qty in stock:
M10 x 200mm - price per pair: £14.00 - Qty in stock:
M10 x 250mm - price per pair: £14.90 - Qty in stock: |
|
