Click image to enlarge
 |

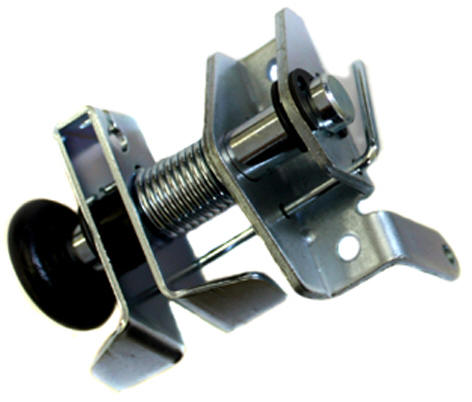

LH anti-drop roller spindle & steel bracket
assembly
for vertically tracked canopy doors
from 2008 to 2009
(LH when viewed from inside garage)
wheel dia. approx. 33mm
fixing hole spacing = 50mm
Our Ref: HEN0186L (Henderson part No: 023093)
price: £
each
excl. VATFor replacement cones & cables
see our ref: HEN0020 |
|
|
|
|

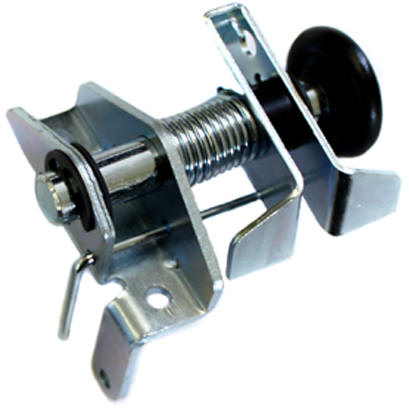

Click image to enlarge
 |
RH anti-drop roller spindle & steel bracket assembly
for vertically tracked canopy doors
from 2008 to 2009
(RH when viewed from inside garage)
wheel dia. approx. 33mm
fixing hole spacing = 50mm
Our Ref: HEN0186R (Henderson part No: 023094)
price: £
each
excl. VATFor replacement cones & cables
see our ref: HEN0020 |
|
|
|
|
Click image to enlarge
 |

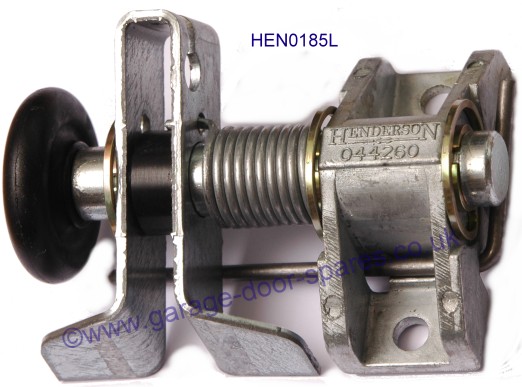

LH anti-drop roller spindle & cast alloy bracket assembly
for vertically tracked canopy doors
from 2004 to 2008
(LH when viewed from inside garage)
includes cast alloy bracket ref: 044260
wheel dia. approx. 33mm
fixing hole spacing = 45mm
Our Ref: HEN0185L (Henderson part No: 051110)
price: £
each
excl. VATFor replacement cones & cables
see our ref: HEN0020 |
|
|
|
|
Click image to enlarge
 |

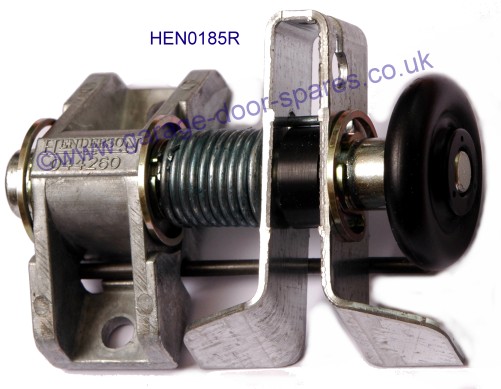

RH anti-drop roller spindle & cast alloy bracket assembly
for vertically tracked canopy doors
from 2004 to 2008
(RH when viewed from inside garage)
includes cast alloy bracket ref: 044260
wheel dia. approx. 33mm
fixing hole spacing = 45mm
Our Ref: HEN0185R (Henderson part No: 051115)
price: £
each
excl. VATFor replacement cones & cables
see our ref: HEN0020 |
|
|
|
|
Click image to enlarge
 |

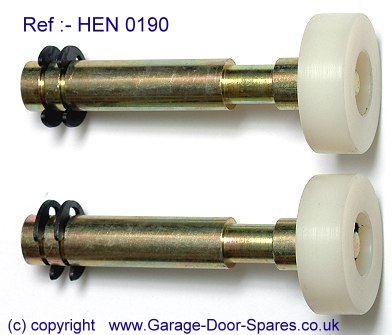

Pair of roller spindles to suit all vertically tracked
canopy doors from approx 1992 to 2004
shaft dia 12.7mm - wheel dia. approx. 33mm
overall length 84mm (supplied with four circlips)
(as Henderson part No: 032017)
Our Ref: HEN0190
price: £ per pair
excl. VATFor replacement cones & cables
see our ref: HEN0020 |
|
|
|
|

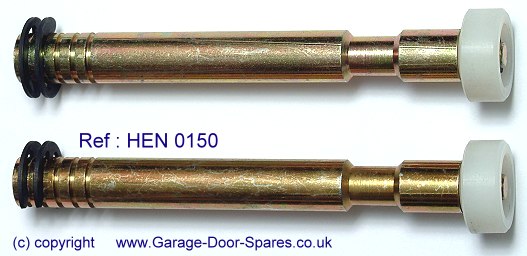

Click image to enlarge
 |
Pair of roller spindles to suit vertically tracked
canopy doors from 1981 to 1992
shaft dia 12.7mm - wheel dia. 22.5mm (circlip fitting)
overall length 123mm (supplied with four circlips)
(as Henderson part No: 032009)
our Ref: HEN0150
price: £ per pair
excl. VATFor replacement cones & cables
see our ref: HEN0010 |
|
|
|
Click image to enlarge
 |

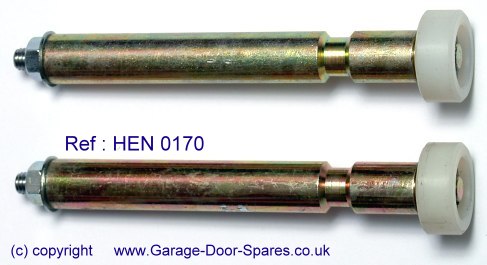

Pair of roller spindles to suit pre 1981 Henderson
vertically tracked canopy doors up to 8' wide
shaft dia 12.7mm - wheel dia. 22.5mm
(bolt fitting)
overall length 118mm
(supplied with two nuts & two washers)
our Ref: HEN0170
price: £ per pair
excl. VAT
For replacement cones & cables
see our ref: HEN0010 |
|
|
|
Click image to enlarge
 |

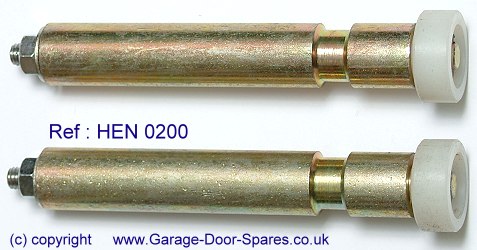

Pair of roller spindles to suit Henderson Double Merlin 14' wide vertically tracked canopy type doors
shaft dia 15.8mm - wheel dia. 22.5mm
overall length 118mm
(supplied with two nuts & two washers)
(as Henderson part No: 039095)
our Ref: HEN0200
price: £ per pair
excl. VAT
For replacement cones & cables
see our ref: HEN0010 |
|
|
|
•
Fitting Instructions • |
Pair of jamb channels (vertical tracks) to suit Henderson pre 1992 canopy doors
vertically tracked canopy doors with 22.5mm dia. rollers
up to 7' high. - overall track length 129cm
our Ref: APH180
price: £ per pair
excl. VAT |
|
|
Rollers for Henderson horizontally tracked doors
|
Click image to enlarge
 |

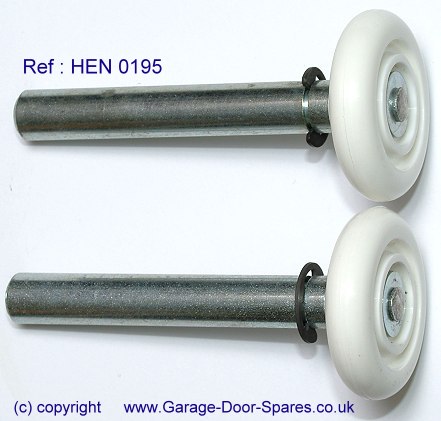

Pair of roller spindles for single & double width
horizontally tracked
doors and 'Ultra' horizontally
tracked door
gear manufactured before 1992
(as used with mounting brackets shown below)shaft dia = 12.7mm - wheel dia. 45mm
overall length 103mm
supplied with two circlips
(as Henderson part No: 032023)
our Ref: HEN0195
price: £ per pair
excl. VAT |
|

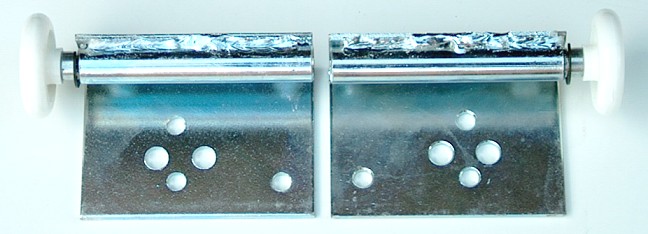

Click image to enlarge
 |

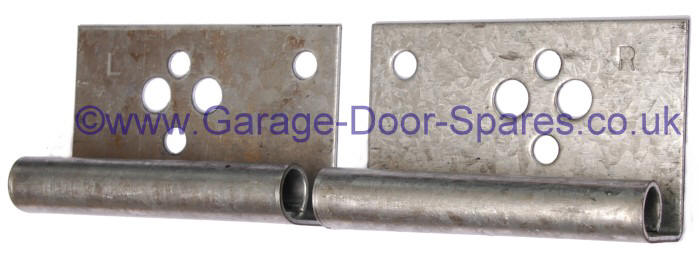

Pair of roller spindle mounting brackets
to suit Henderson horizontally tracked
doors manufactured before 1992
dimensions: 100mm x 64mm
(rollers sold separately - see above)
as Henderson part ref: 005421 & 005438
our Ref: HEN0071
price: £ per pair
excl. VAT |
|
|
