Click image to enlarge
 |

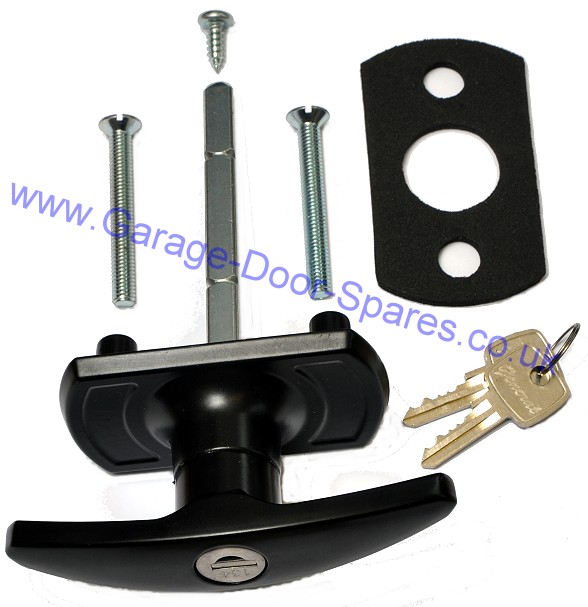

Locking 'T' Handle with two keys
(as fitted to all Wessex doors prior to the
introduction of the 'Euro' handle as shown below)
Has a 76 x 44mm facia plate with two 13mm long M6 threaded
fixing spigots spaced 51mm apart and a 79mm long x 8mm
square shaft which can be easily cut down to match the length
of your original handle (note: the square shaft is pre-drilled
with a 4.5mm hole to a depth of 18mm to accept a self tapping
fixing screw for the Cardale internal handle types AZSP1018,
AZSP1024 & AZSP1308 (see below)
Supplied with M6 fixing screws & two keys - colour: black
our Ref: CAR0050
price: £
excl. VAT
|
|
|
|
Click image to enlarge
 |

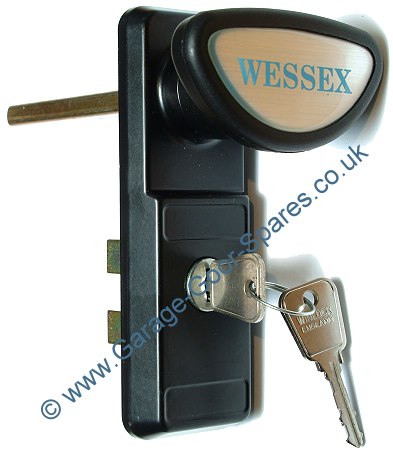

Wessex 'Euro' handle
(as fitted from Jan 2000)
shaft length 93mm - supplied with two keys
The image illustrates the current design with the round
lock cylinder but this handle was revised
in approx. 2002.
The earlier version
was fitted with a 'keyhole shape'
40mm Euro profile lock cylinder
(see CAT0250/40 below)
Wessex Pt No. AZSP3523
Availability:
no longer available with Wessex logo but
the
long spindle
type Cardale 'Euro lock' is fully compatible - click here
for details & price |
|
|
Replacement barrel & keys
for the above Euro handle |
|
Click image to enlarge
 |

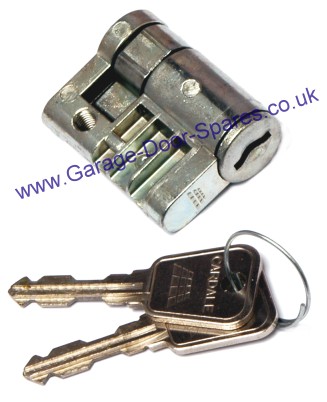

Replacement round type lock cylinder &
keys to suit locks with a round cylinder
as illustrated on right >>
Nickel Chrome finish.
spare circlip & fitting instructions
supplied.
As Cardale ref: AZSP1215 |
Click image to enlarge
 |
|
One cylinder with two keys (random match)
price £ excl. VAT
Keyed alike cylinders with same key profile (max qty 5)
two keys supplied per cylinder - i.e. 2 cylinders would
be supplied with with 4 keys of the same profile
price per cylinder £
excl. VAT
|
|
|
|
|
|
|
Click image to enlarge |
'keyhole shape' 40mm Euro profile lock
cylinder to suit pre 2002 Wessex 'Euro lock'
handles
as illustrated on right >>
spare circlip & fitting instructions
included.
Note: the Eurolock cylinder & keys pictured left is for identification
purposes only, the
lock barrel we'll supply
will be a
good
quality pattern replacement with three keys.Regretfully we are unable to supply
these lock cylinders as keyed alike pairs |
Click image to enlarge
 |
|
Nickel Chrome finish - our ref: APE40N
Discontinued
|
|
Brass finish - our ref: APE40B
Discontinued
Dual Finish Brass and Nickel - our ref: MX-D/10/30
price £ excl. VAT
|
|
|
|
Click image to enlarge
 |

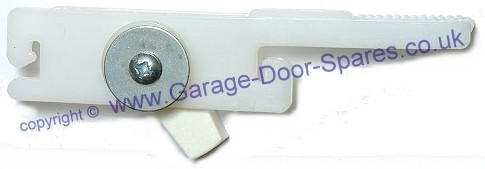

White plastic 2 point latch lever
for slideaway doors with two point locking
Cardale Part. No. AZSP1018
availabilty: discontinued
Note: The black plastic 3 point latch lever and cam below can be used as
an alternative on most doors that originally used this 2 point latch
lever. |
|
|
|
Click image to enlarge
 |

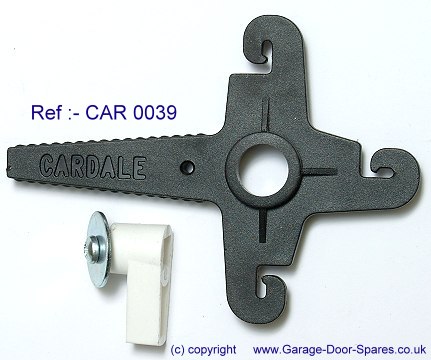

Black plastic 3 point latch lever and cam
for slideaway doors with three cable locking
supplied with plastic cam lever, fixing screw & washer
Cardale Part. No. AZSP1024
price: £
excl. VAT
|
|
|
|
Click image to enlarge
 |
Black plastic 3 point latch lever and cam
for CD45, CD Pro and safelift canopy doors
with 3 cable locking
supplied with plastic cam lever, fixing screw & washer
Note: the illustration shows the current design but it
can be be used as a replacement for the early design
Fitting Instructions (refer to section 6)
Cardale Part. No. AZSP1308
price: £
excl. VAT
|
|
|
|
Click image to enlarge
 |

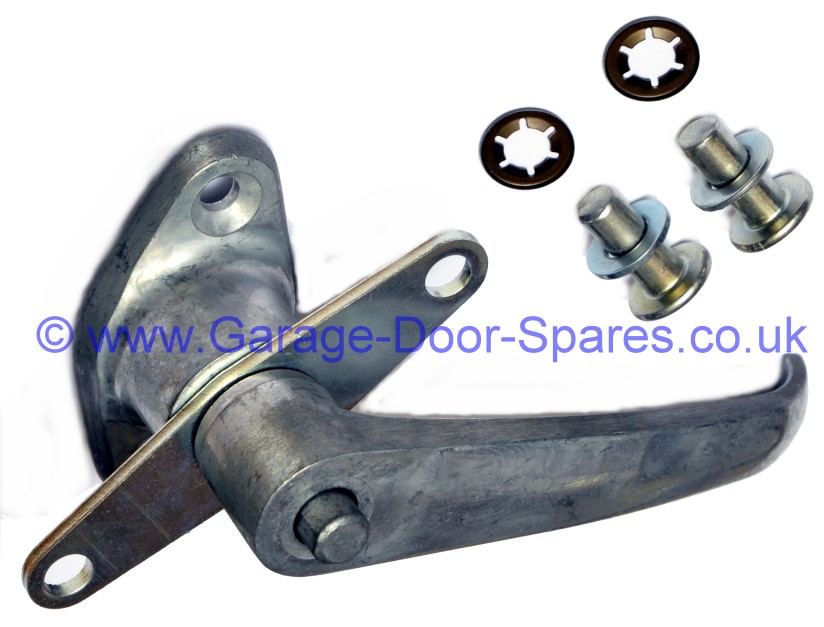

Internal handle for Wessex doors
with two-point bar type locking
Note: The two fixing holes are orientated
North/South and are spaced 51mm apart
(some earlier versions had East/West fixings)
supplied with two 8mm pivot pins &
starlock fixing washers as illustrated.
our Ref: WES0260
price: £
excl. VAT
|
|
|
 |
Note: some early versions of these handles had East/West fixings,
(back plate fixing screws are positioned left & right) regretfully these are no longer available but the current north/south version can be
fitted as an alternative by drilling two additional holes in the door orientated north/south and
securing the new inner handle WES0260 with separate fixing screws
Three point locking version
This item is discontinued and no
suitable alternative is available |
|
|
|
Click image to enlarge
 |
Graphite Lock Lubricating Powder
Graphite powder is a dry compound which is ideal
for lubricating garage door locks, car door locks and
outside padlocks etc. to prevent sticking and extend
the life of the lock by reducing wear and corrosion.
Unlike oil, Graphite powder won't attract a build-up
of dirt & grime and it cannot freeze.
The 50g puffer dispenser with it's pointed probe
ensures quick & simple application to any lockOur
Ref: K30050
price: £ excl. VAT |
|
|
|
|
|
Click image to enlarge
 |

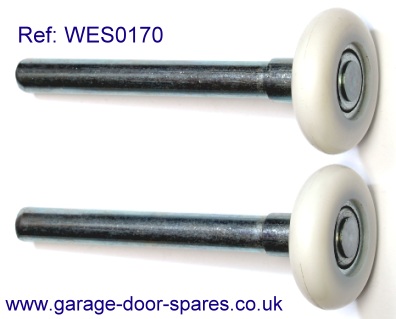

Ball-raced roller spindles to suit doors with
Wessex/Ellard horizontally tracked gear
(these doors have rigid flat-bar type locking)
shaft dia 12.7mm - wheel dia 46mm
overall length - 122mm
our Ref: WES0170
price: £
per pair excl. VAT
|
|
|
|
Click image to enlarge
 |
Ball-raced roller spindles for pre-1998
Wessex vertically tracked canopy type doors
(these doors have rigid flat-bar type locking)
shaft dia 12.7mm - wheel dia 46mm
overall length - 122mm
our Ref: WES0040
price: £
per pair excl. VAT
For replacement cones & cables see our ref: APW10 |
|
|
|
Click image to enlarge
 |

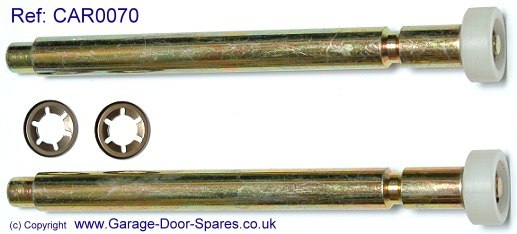

Roller spindles to suit Wessex steel canopy doors fitted with Cardale CD45 vertically tracked support gear
(these doors have cable operated top & side latches)
shaft dia 12.7mm - wheel dia. 22.5mm
overall length 160mm (not suitable for GRP doors)
supplied with starlok washers
(as Cardale part No: AZSP1009)
our Ref: CAR0070
price: £
per pair excl. VAT
For replacement cones & cables see our ref: CAR0020 |
|
|
|
Click image to enlarge
|
Roller spindles for Wessex GRP (fibreglass) canopy doors fitted with Cardale CD45 vertically tracked support gear
(these doors have cable operated top & side latches)
shaft dia 12.7mm - wheel dia. 22.5mm
overall length 167mm
supplied with starlok washers
(as Cardale part No: AZSP1028)
our Ref: CAR0071/APW41
price: £ per pair
excl. VAT
For replacement cones & cables see our ref: CAR0020 |
|
|
|
Click image to enlarge
 |
Suspension cables & cones for pre-1998
Wessex vertically tracked canopy type doors.
suits all door sizes - two 4mm roll-pins supplied.
Note: these doors were fitted with rigid flat-bar type locking
and have 46mm dia. guide rollers (see WES0040 above)
our Ref: APW10
price: £
per pair excl. VAT
|
|
|
|
Click image to enlarge
 |

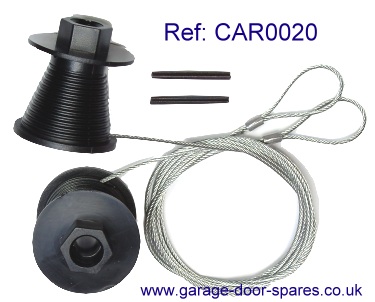

Pair of suspension cables & cones to suit Wessex canopy doors
fitted with Cardale 'CD45' type vertically tracked support gear
(these doors have the spring mounted across the frame header and
tapered cones with distinctive hexagonal flats to suit a 22mm spanner and
these doors have cable operated top & side latches) suits all door sizes - two roll pins supplied.
fitting instructions
(PDF file)
our Ref: CAR0020
price: £
per pair excl. VAT
Note: these cables are not available without the cones |
|
|
|
Click image to enlarge
 |
Pair of suspension cables for current Wessex canopy doors fitted with Cardale
'CD Professional' series vertically tracked 'anti-drop' canopy gear
with parallel cable drums as shown below (suits all door sizes)
fitting instructions (817kb PDF file)
Cardale Ref: AZSP1101
our ref: CAR0045
price: £
per pair excl. VAT
|
|
|
|
Click image to enlarge
 |
Pair of pulley drums for current Wessex canopy doors fitted with Cardale 'CD Professional' series vertically tracked 'anti-drop' canopy gear.
Please note that suspension cables are no longer included.
Roll pin & split pin included.
fitting instructions
(817kb PDF file)
Cardale Ref: AZSP1102 & AZSP1117
price: £
per pair excl. VAT
|
|
|
|
|
Click image to enlarge
4mm long nosed pin punch for driving out roll-pins from canopy door cones
(an essential tool when replacing canopy cones & cables) |
|
|
|
|
our Ref: T3328 10
price £
excl. VAT
|
|
|
Counterbalance springs for Wessex/Ellard
horizontally tracked doors
Note: These springs are colour coded to
match the size/weight of the door
and should be replaced with the
same colour springs as the originals
|
 |
Springs for doors on Wessex/Ellard
horizontally tracked gear (see below) |
|
|
|
|
Wessex/Ellard 'Black' spring - our Ref: APW90 -
price: £ per pair
excl. VAT
Dimensions: (approx)
45mm dia overall - wire dia 5.5mm - length over coils 496mm (excluding loops)
approximate number of coils 91
Qty of pairs in stock:
|
|
Wessex/Ellard 'Grey' spring - our Ref:
APW80 -
price: £ per pair
excl. VAT
Dimensions: (approx)
50mm dia overall - wire dia 6.5mm - length over coils 508mm (excluding loops)
approximate number of coils 80
Qty of pairs in stock:
|
|
Wessex/Ellard 'Blue' spring - our Ref:
APW110 -
price: £ per pair
excl. VAT
Dimensions: (approx)
54mm dia overall - wire dia 7.5mm - length over coils 508mm (excluding loops)
approximate number of coils 67
Qty of pairs in stock:
|
|
Wessex/Ellard 'Brown' spring - our Ref:
WES0060 -
price: £ per pair
excl. VAT
Dimensions: (approx)
56mm dia overall - wire dia 8.5mm - length over coils 502mm
(excluding loops)
approximate number of coils 60
Qty of pairs in stock:
|
|
Wessex/Ellard 'Yellow' spring - our Ref:
APW100 -
price: £ per pair
excl. VAT
Dimensions: (approx)
68mm dia overall - wire dia 8.7mm - length over coils 470mm
(excluding loops)
approximate number of coils 53
Qty of pairs in stock:
|
|
|
Note: The Red & Green Ellard springs are discontinued
but the following substitutes can be used:
'Red' can be replaced with a pair of 'Blue' springs - our Ref: APW110
'Green' can be replaced with a pair of 'Brown' springs* - our Ref: WES0060
* longer adjusting bolts may be required
D.I.Y. guide to replacing springs
Springs not in stock at our premises will be despatched by courier
direct from our supplier, order by 1pm for same day despatch
|
HOW TO ORDER
Identify the spring type you require from the details provided, click 'Buy Now' then follow the on-screen instructions
Note: Garage door springs tend to fail within a year of each other so we recommend they are replaced in pairs, therefore we don't supply springs individually. |
|
Note: Take care to cross-check the spring dimensions & other details carefully as springs ordered in error and returned for refund will be
subject to a 20% charge to cover our admin & shipping costs
Spring characteristics are determined by more factors than just the dimensions or number of turns so you
must ensure that the colour coding, diameter, length and the number of turns of your
original springs match all the information given beside the replacement
and that your door is fitted with Wessex/Ellard lifting gear before ordering.
Need help identifying your door gear manufacturer?
Click here |
|
|
Replacement spring adjusting bolts |
|
Click image to enlarge
Spring tensioning bolt |
|
|
|
M8 x 200mm - price per pair: £10.42 excl. VAT
-
M10 x 200mm - price per pair: £11.67 excl. VAT
-
M10 x 250mm - price per pair: £12.42 excl. VAT
-
|
|
|
PLEASE NOTE:
Springs are delivered by courier between 8.30am - 5.30pm
Monday to Friday and the driver will require a signature on
delivery
so please bear this in mind when you specify the delivery address |
|
Springs not in stock at our premises
will be despatched by courier
direct
from our supplier, order by 1pm for
same day despatch We do not export springs overseas |
|
All our prices are subject to 20% UK VAT
Free Delivery Option to
most UK destinations
on
orders over £50 |
|
|
Other spares for Wessex / Ellard horizontally tracked doors |
Wessex / Ellard type 'H' pivot arm
original
fitting instructions |
Click image to enlarge

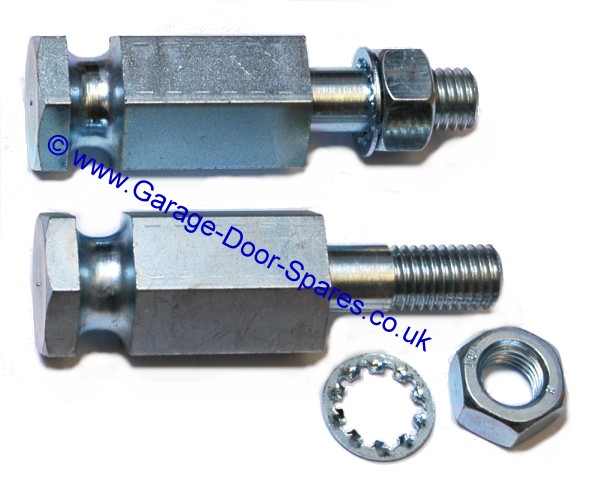

Wessex / Ellard spring pivot anchor pins
Type H - our ref: WES0070-2
overall length 80mm
(48mm
excluding fixing bolt) bolt dia 12mm (M12)
price: £18.75 per pair excl. VAT
Type XH - our ref: WES0080-2
overall length 105mm
(60mm
excluding fixing bolt) bolt dia 16mm
price: £38.96 per pair excl. VAT
|
|
|
Click image to enlarge
Replacement 'type H' pivot arms
As fitted to Wessex / Ellard doors from 9' to 15' wide with one spring each side. |
overall length of arm 102cm - supplied with 48mm spring anchor pins
Wessex Part No: AZSP 3422, Our Ref: W01/ASSY / WES0090-2
Price: £ per pair
excl. VAT
Availability:
to special order, despatched direct from our supplier
for an alternative door gear option
click here |
|
|
|
|
Note: From Sept 1998 onwards all but the heaviest
of double width Wessex Doors were supplied
with Cardale door support gear
See our range of Cardale Door Spares
|
|
Wessex Lift-Boy GB1 remote control handsets |
 |
 |
|
•
Click here
for details • |
|
01384 900 264
*
*
